Rn.10

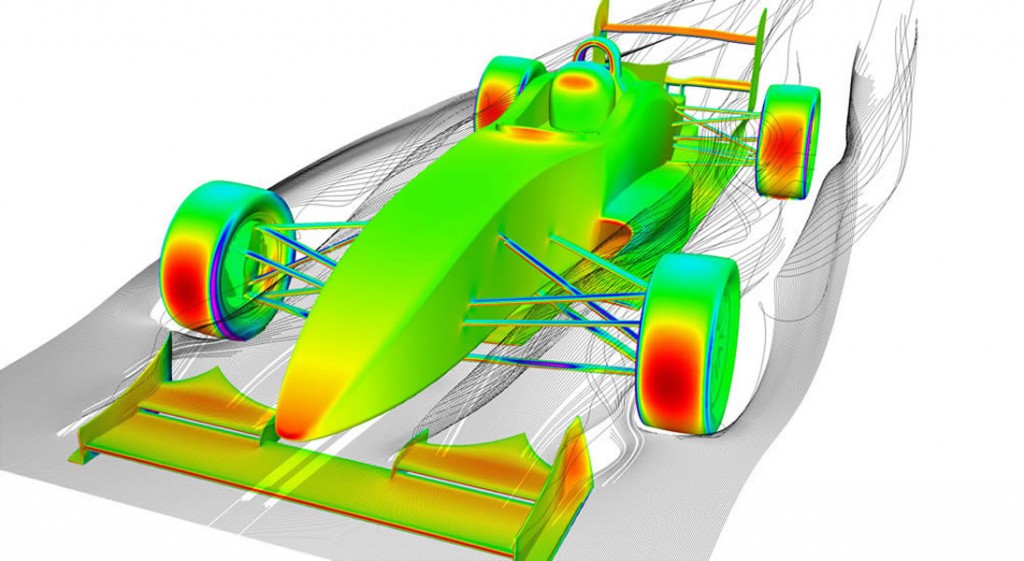

• Advanced aerodynamic design developed with state of the art CFD analysis and full scale wind tunnel testing
• Race-proven aero package including:
• proprietary front wing profile with adjustable flaps
• high efficiency single element upper rear wing
• shaped lower rear wing with streamline mounting pylons
• extended rear composite endplates
• double decker diffuser
• Billet aluminum uprights with thin-section ceramic bearings and hollow steel spindle
• Lightweight aluminum centerlock nuts with automatic wheel retainer spring plunger system
• Aluminum rockers on double shear mounts with 1:1 motion ratio (front and rear)
• Alcon Type R aluminum calipers and Alcon S-grooved disks with floating bobbin mount
• Fully adjustable pedal box with rear-pivot master cylinders
• CNC machined aluminum front bulkhead with T-style steering rack
• Chrome-moly streamline wishbones, front pushrods, and rear pullrods (left and right wishbones identical)
• Blade adjustable chrome-moly anti-roll bars, same front and rear
• AN/MS/NAS aircraft quality hardware throughout, Aurora PR series rod ends and spherical bearings
• Fabricated aluminum bell housing with integral oil tank, breather, and catch tank
• High efficiency aluminum radiators, aluminum hard lines with Wiggins clamshell couplings (no hose clamps)
• Low profile integral output flanges and tripod joints with hollow driveshafts

Safety Features

• TIG-welded 4130 alloy steel tube frame and continuous 4130 alloy steel floor and seat back
• Carbon fiber cockpit interior panels forming an F3-style safety cell
• Carbon fiber quick-release nose cone with integral crush structure
• Carbon fiber radiator air inlet ducts with impact attenuation structure
• Carbon fiber tail-cone with integral crush structure
• Aerodynamically-shaped steel roll hoop – meets FIA F3 specifications
• Lifeline Zero Zero advanced fire supression system (FIA approved)
• Fuel Safe 6 gallon fuel cell with internal Walbro pump (FIA approved)

Chassis Price: $60,000

Options

• Zetec engine installation kit, including front and rear billet aluminum engine mounts
• Tilton Super Starter XLT with custom nose
• Stainless exhaust side heat shield assembly and ducting

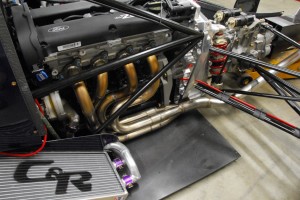

• Zetec exhaust headers, TIG-welded stainless steel
• Zetec collector and tail pipe, TIG-welded stainless steel
• Zetec plumbing kit, including all required lightweight Kevlar oil and fuel hoses
• Zetec engine wiring harness including fuel pressure, oil pressure, and oil temp connectors
• Zetec chassis wiring harness for Pectel ECU, relays, switches, data and serial comms
